BACK LIT

EID’s LED Light Panels are thin, custom sizable, optical clear sheets with high output tier one LEDs.

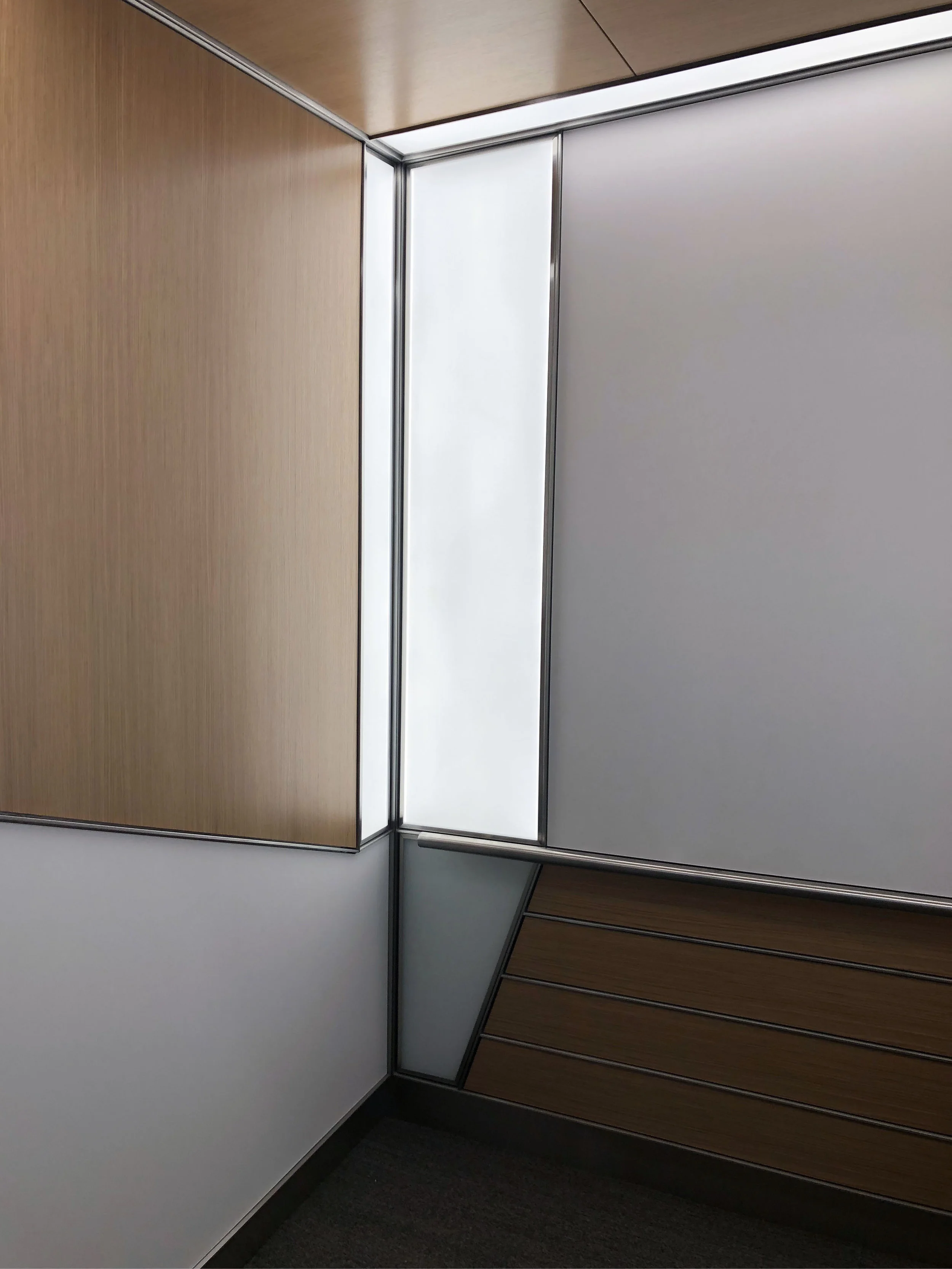

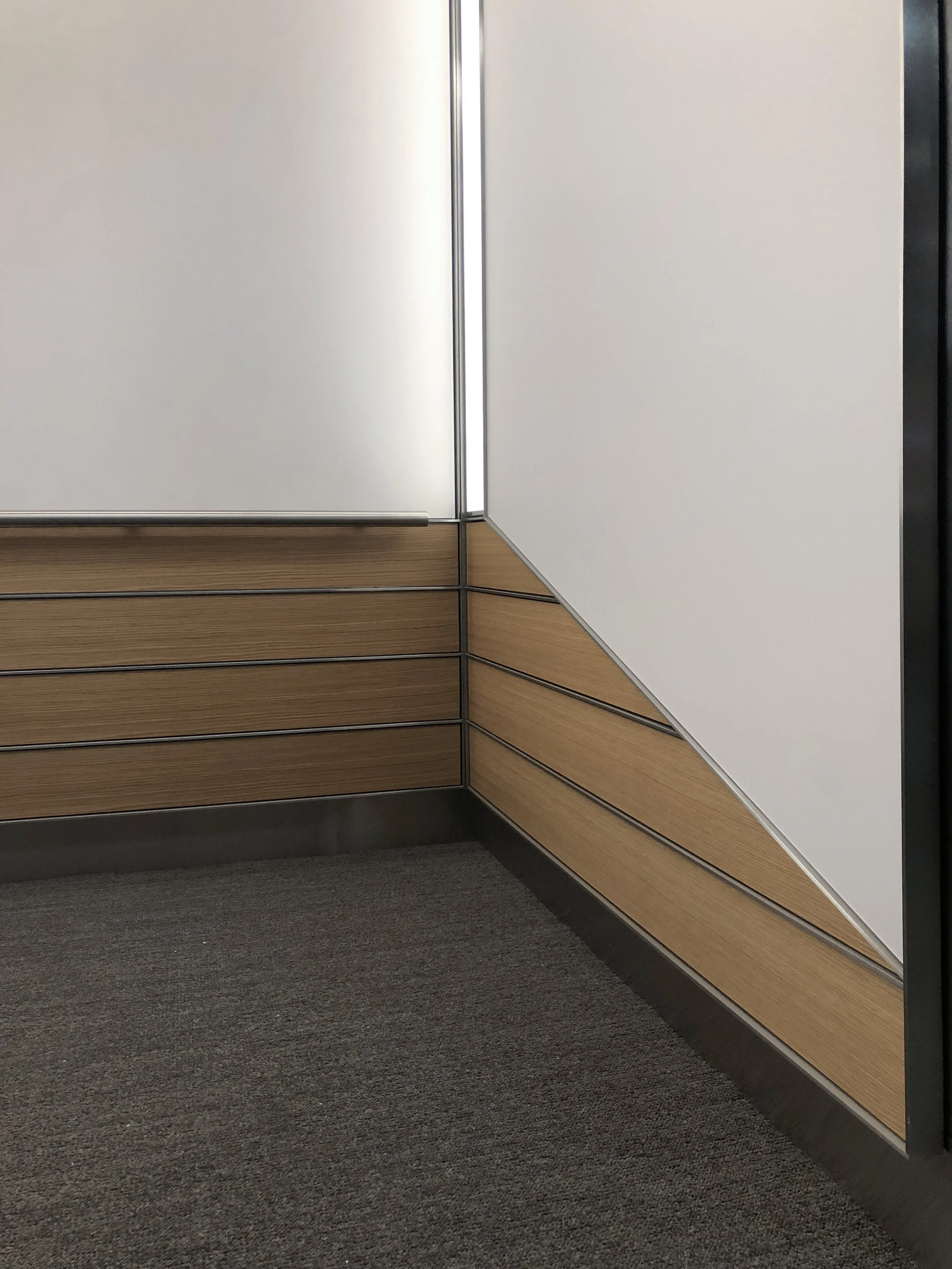

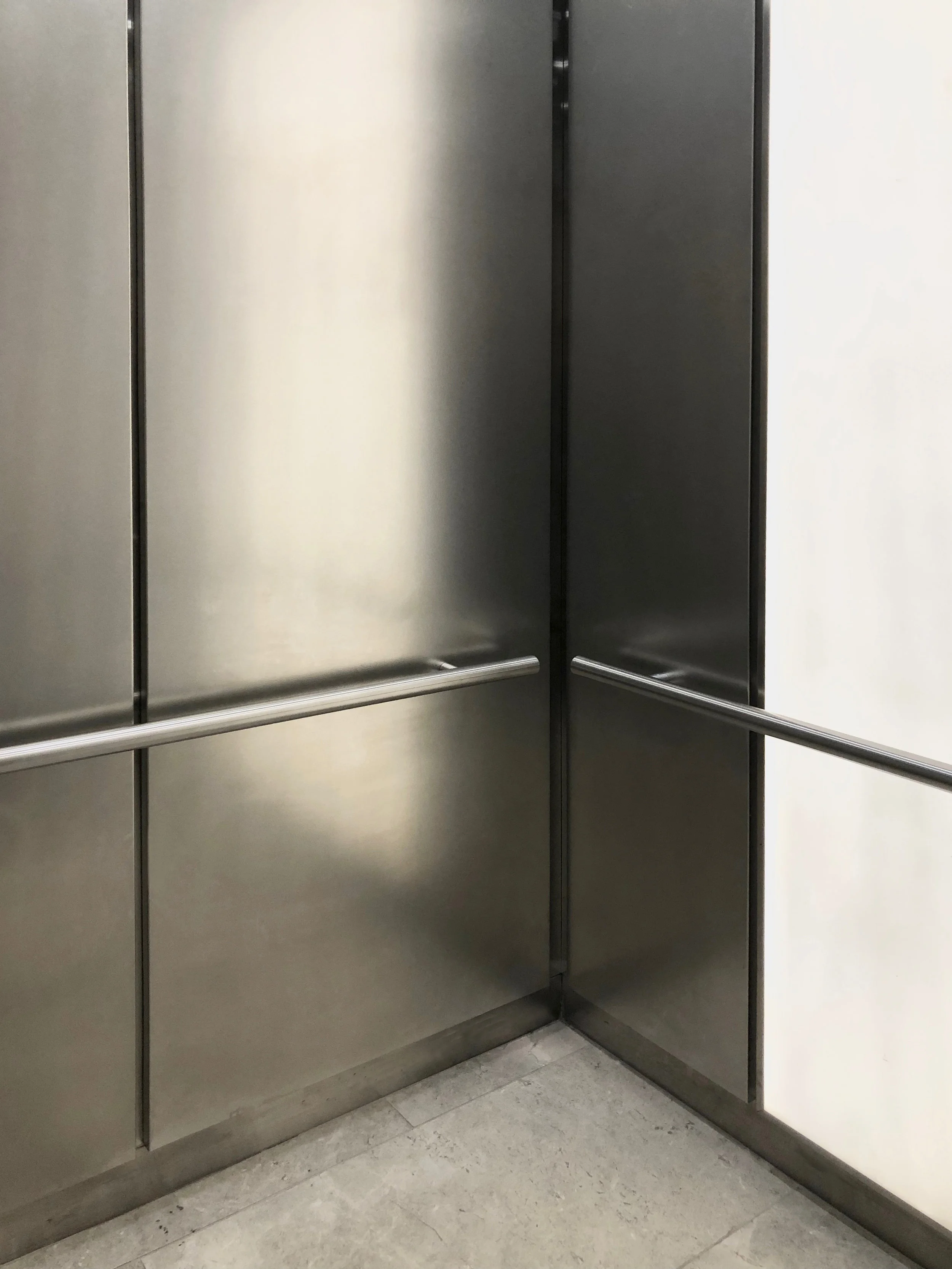

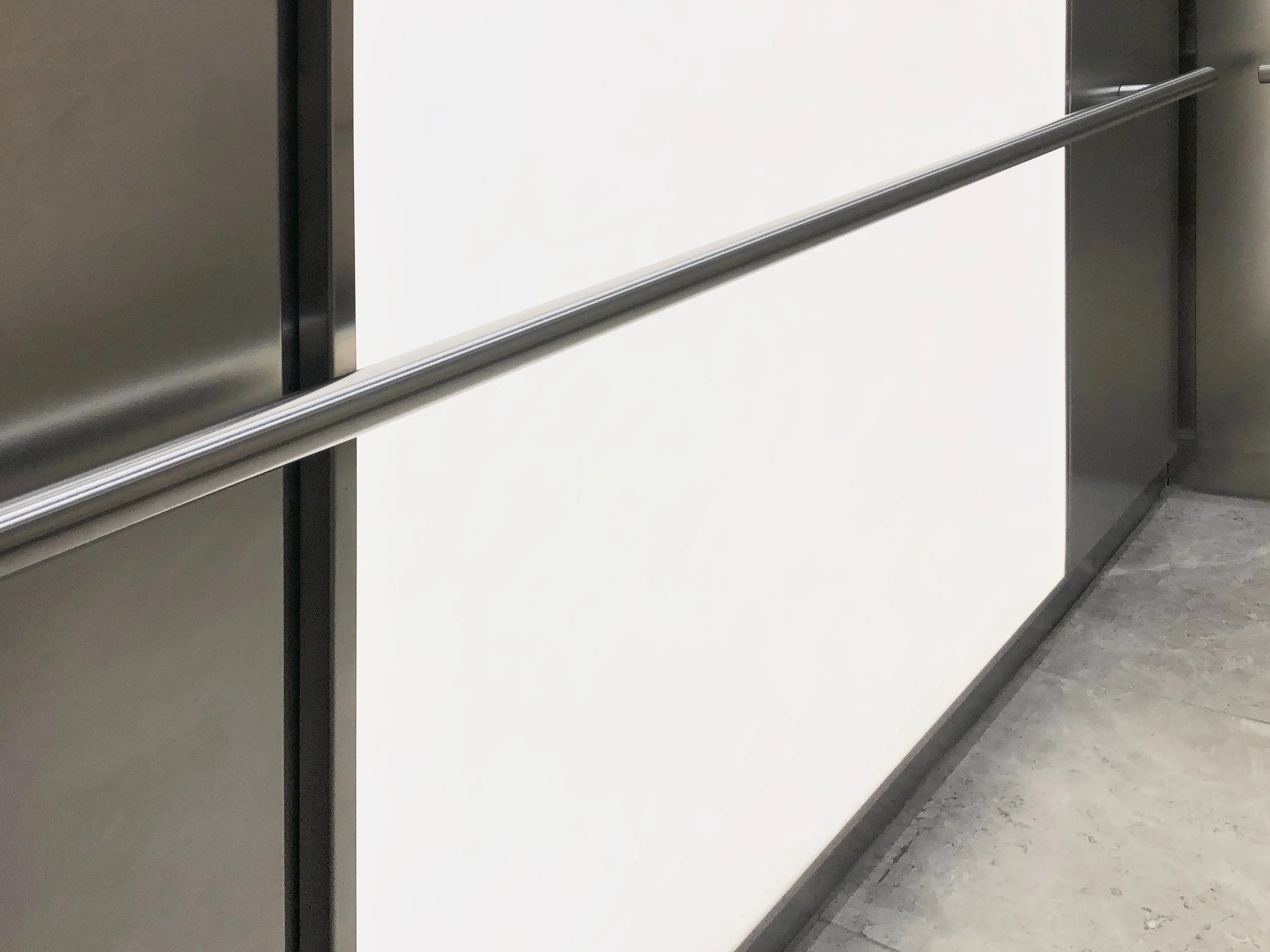

With their uniform, bright illumination and thin, lightweight characteristics, our high output LED Light Panels are ideal to illuminate any translucent material in elevator.

Output
MAX-HIGH OUTPUT

Power consumption
17 W/M (5.18 W/Ft)

Panel Thickness:
8mm[0.31”] +thickness of panel material

Operating Voltage
24 Vdc

Dimmable Options
0~10V | PWM | DALI | WIRELESS REMOTE

*Requires additional inline dimming module

Output Color options
DAYLIGHT: 5800K (RECOMMENDED)
NEUTRAL: 4100K
WARM: 3000k are available upon request
RGB 8mm[0.31”] (STATIC COLORS AVAILABLE)

Weight
2.2 Lbs 8mm [0.31] THICK Plus the weight of face materials

Minimum Size
2 X 3” (50 x 76 mm)

Recommended max Size
48 x 96” (1219 x 2438 mm)

Operating Life Span
50, 000 to 70,000 HOURS (L70)

Operating Temperature
-22 Degrees to approximately 104 Degrees
